INSTRUCTIONS for CRICA-LOT "Skin" Use and Trachea Replacement

1. Insert pre-cut non-woven 4x 4" cotton pads (or cut cotton padding) into the "skin" pouch.
2. Use additional sheets of padding to simulate obesity.
3. Insert 10-20 cc of fake blood into pouch, if desired.
4. Carefully peel back layer of "skin" pouch and affix upper edge (marked TOP) to hyoid; smoothly press remainder of pouch onto larynx and trachea. Adjust the sides of the "skin" so the larynx remains mobile.

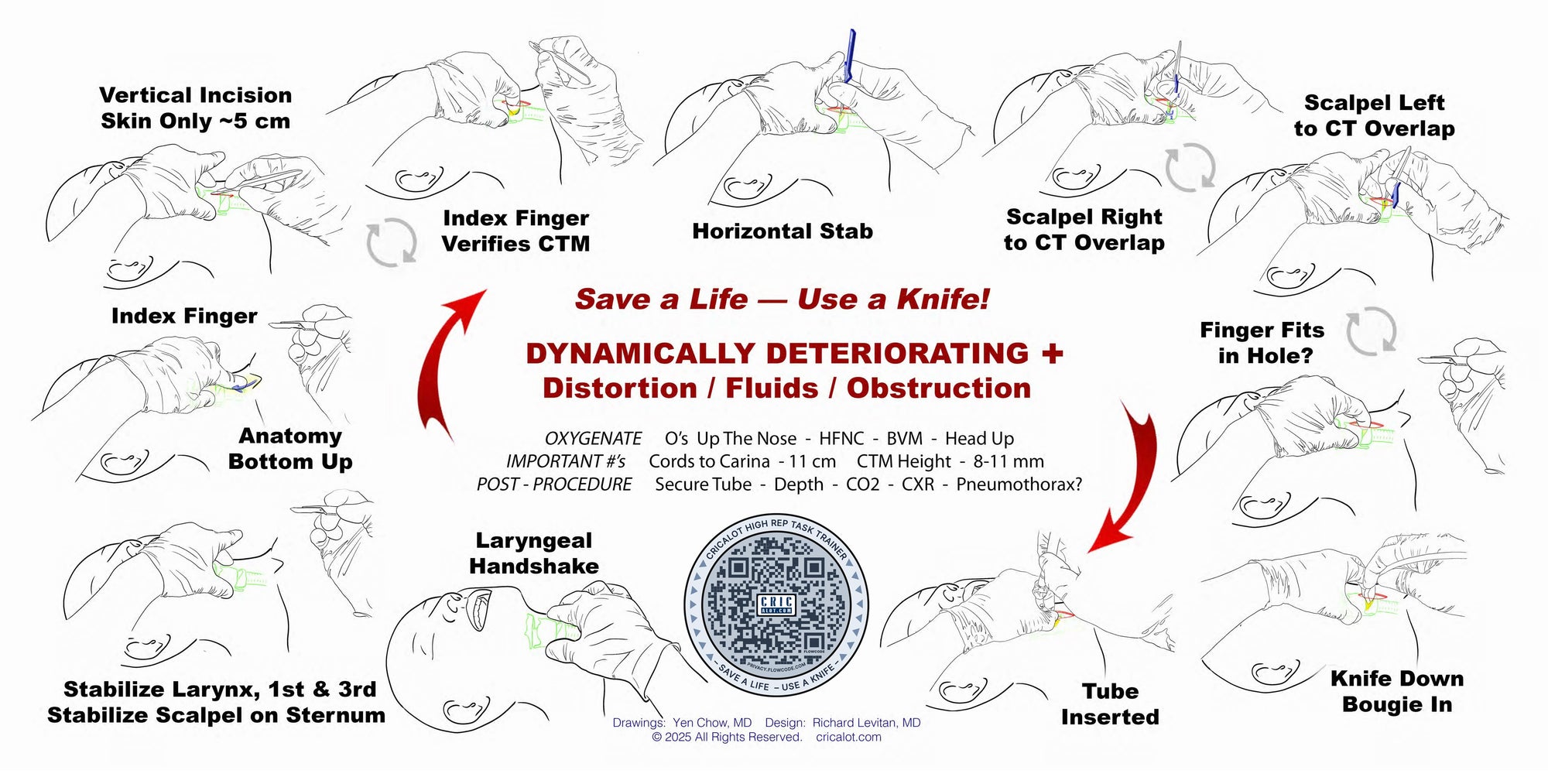

5. Use model to practice procedure (steps shown below).
6. Remove pouch carefully off of the model and repeat. Apply Goo Gone or other agent to remove any leftover adhesive. Wash off fake blood by washing with water.
7. Trachea replacement: Male and female are different sizes. Slide trachea from bottom up into the grooves on the model. The small bump at the lower trachea goes in last.
8. Lubricate the back screws and base of larynx if needed.

The World's Greatest Cric Video - Military Training Channel circa 1950's

Military "volunteers," no gloves, assorted cutting instruments and place holders in the airway.

Excellent review of anatomy with disarticulated human larynx and trachea.

Video displays horizontal cut through skin and cricothyroid membrane on initial incision.

This technique is NOT recommended--always use a midline vertical incision first!

Verify the CTM (from trachea up to cricoid ring) before rotating blade to horizontal orientation at CTM.

But the video is priceless.

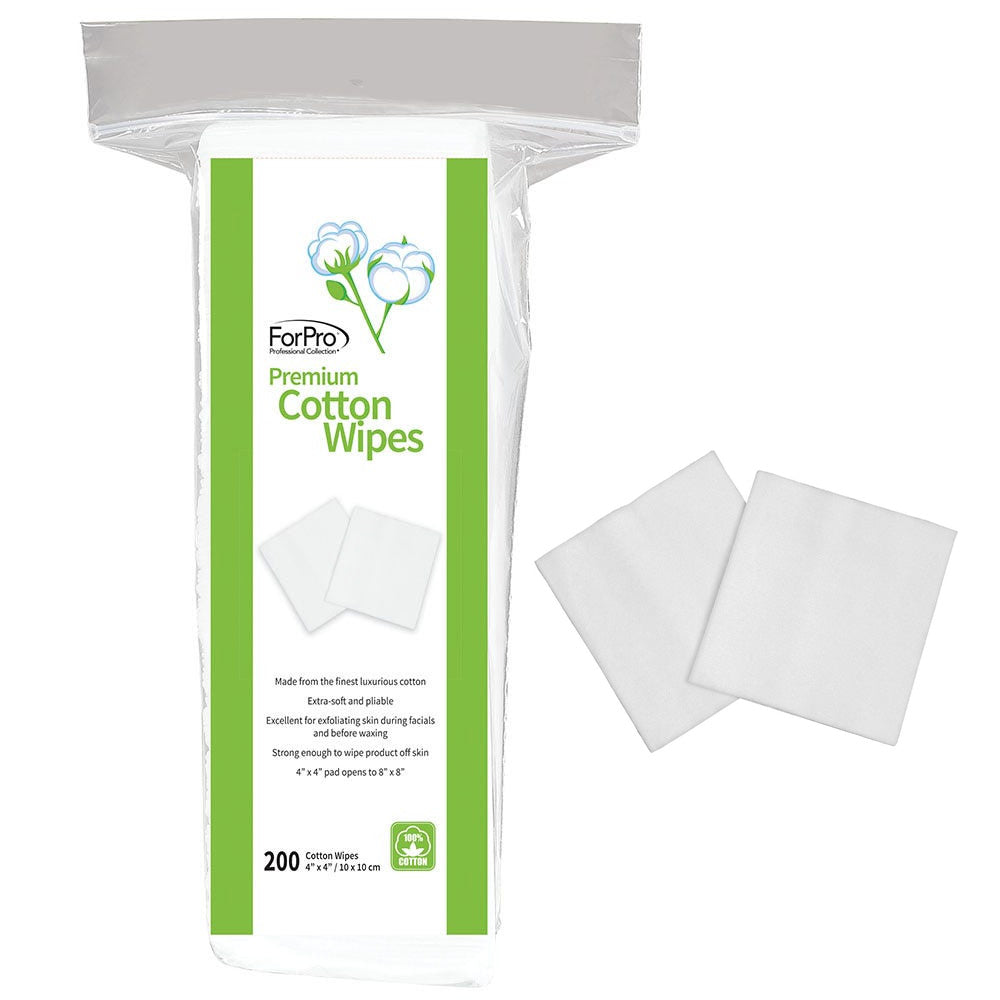

Pre-cut 4x4' non-woven cotton pads

4x4" non-woven cotton pads cost less than 5 cents per pad.

Can quickly be loaded into skin pouches.

Widely available through multiple sites including Amazon and Walmart

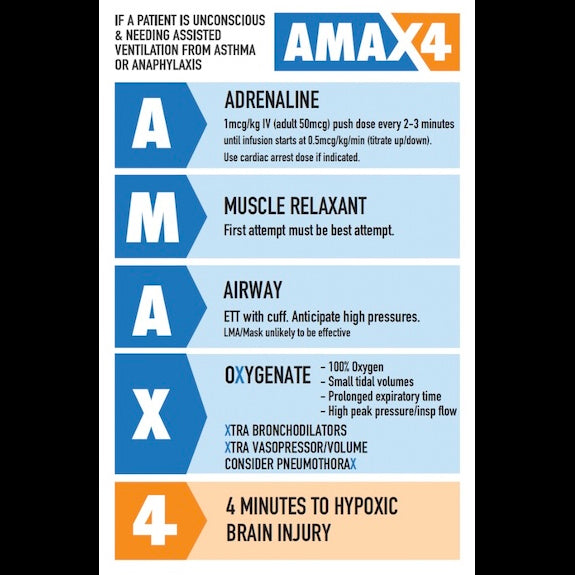

AMAX4 - A best-practice algorithm for Critical Care Clinicians in Anaphylaxis and Asthma resuscitation.

AMAX4
